A guitar can sit at the right level and still feel thin. A vocal can be clear enough yet have a nasal edge that follows every phrase. Both invite an EQ adjustment, but finding the right one involves a different set of controls.
A graphic EQ gives you a row of fixed frequencies to work with: move a slider, hear the change, try the neighbouring band. A parametric EQ lets you move the adjustment through the spectrum and set its width. That flexibility is particularly useful when a small area of the sound needs attention.
What actually changes between the two?
On a graphic EQ, each slider boosts or cuts around its labelled centre frequency. Adjacent bands overlap, so moving several sliders shapes their combined response. The layout gives you a quick overview of the adjustments.
A parametric bell band has frequency, gain and Q controls. Q sets the width: a higher value concentrates the adjustment into a narrower area. Hardware often combines these mid-band controls with high and low shelves. Some graphic designs also vary their bandwidth as you boost or cut, which matters when making larger moves.
| Decision | Graphic EQ | Parametric EQ |
|---|---|---|
| Where does the adjustment sit? | At the supplied centre frequencies | At a frequency you select within the band's range |
| How wide is the adjustment? | Determined by the design; it may change with gain | Adjustable on bands that provide a Q control |
| What makes it convenient? | A consistent frequency grid and immediately visible gain settings | The ability to place and shape an adjustment around a particular problem |
| What should you watch for? | Nearby bands can affect overlapping parts of the sound | An over-narrow or over-deep cut can remove useful tone |
For a deeper explanation of frequency, gain and Q, see our guide to using a parametric EQ. The examples below put those controls to work.
Adding body to a thin guitar
Take the thin guitar as a listening exercise. Bring up the bass and drums around it, then listen to the body of the chords. A little low-mid lift may help the guitar feel fuller; too much can crowd the bass or make the rhythm sound heavy.
On a ten-band layout, try a small lift at 250 Hz. Return it to zero, then try 500 Hz. Depending on the recording, one may bring out useful weight while the other emphasises a boxy quality. Listen through a few chord changes before choosing. These frequencies are starting points for this exercise; the instrument, mic position and arrangement will affect where you settle.
Once you have a promising setting, bring the vocal back in. If its lower notes become harder to follow, reduce the guitar boost and compare again. You may find that a smaller move keeps the extra body while leaving enough space for the singer.
This is where a graphic EQ feels direct: the same frequency choices are always in front of you. A broad parametric bell works well here too, especially if you keep wanting to place the lift somewhere between two sliders.

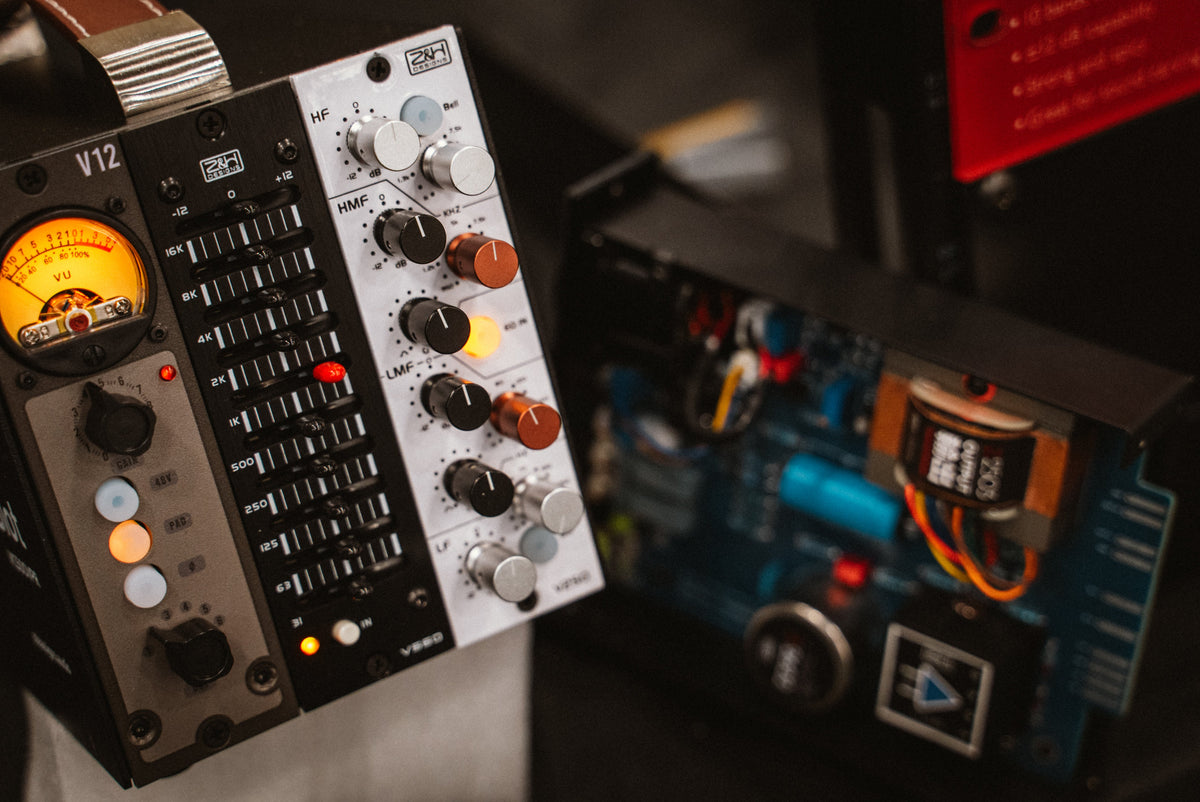

The Z&H V560 Graphic EQ provides ten bands from 31 Hz to 16 kHz, with up to 12 dB of boost or cut. Its manual describes bandwidth becoming narrower as boost or cut increases. There is no separate Q knob: changing the amount also changes the shaping behaviour.
Try a gentle cut, then deepen it while listening to the frequencies around the centre. The adjustment becomes more focused as the cut grows. When several sliders are in use, return one to zero occasionally to hear how much it contributes to the overall shape.
Finding a vocal resonance between the bands
For a second exercise, suppose a vocal has a persistent resonance around 740 Hz. On an octave-spaced graphic EQ, that falls between the 500 Hz and 1 kHz controls. Cutting either band may help, but listen to the rest of the voice: the chest tone may recede before the nasal edge has eased enough. Cutting both can leave an even larger hole.
With a parametric band, place a modest cut near that area and move the frequency slowly while the phrase repeats. Once the resonance softens, adjust Q. A wider cut may smooth more of the phrase but take away some warmth; narrowing it may preserve that warmth while leaving the surrounding tone intact. Stop to compare with bypass, then listen to another phrase. The 740 Hz figure is hypothetical, so follow the resonance in your own recording.
A hardware band's available Q sets a limit on how closely you can target a resonance. Very narrow problems may need a dedicated notch filter. If the unwanted edge appears only on a few words, editing or a time-varying process can also leave more of the unaffected performance alone.
The Z&H V250 Parametric EQ takes a different approach: four bands with variable frequency controls, independent Q controls on the two mid bands, and bell/shelf switching on the high and low bands. The high and low bands each serve as either a bell or a shelf.
On the V250, use a mid band to explore the vocal exercise above: find the frequency first, then adjust the width. Its mid-band Q range runs from 0.4 to 4. The high and low shelves are useful for broader tonal changes, such as lifting the top end after settling the midrange.
Can you use both?
A parametric cut followed by graphic EQ is a useful combination to try when a track needs both correction and a broader tonal change. Reduce the persistent resonance first, then judge the balance again. Removing that distraction may change how much extra brightness or body you want.
After adding the second EQ, bypass each stage separately. Listen for the resonance returning when the first is out, and for the tonal balance changing when the second is out. If you struggle to hear a useful contribution from one stage, simplify the chain.
This workflow also works across hardware and plug-ins. A plug-in can handle detailed correction while hardware provides hands-on tonal shaping. Colour and transparency depend on the particular design and settings; either control layout can be used for subtle changes.
Check the result at the same level
Before keeping a setting, match the processed and bypassed levels with a separate post-EQ trim if needed. Leave headroom through the chain. A small boost can sound convincing simply because the track is louder; level matching makes it easier to hear whether the tone itself has improved.
Then play the busiest part of the arrangement. Can you still follow the vocal's lower notes after adding body to the guitar? Does the vocal keep its chest tone after the resonance cut? Reduce the adjustment until the problem starts to return, and compare that point with your first setting. The smaller move may be enough.
Technical references
Control details: V560 User's Guide and V250 User's Guide. For another documented example of gain-dependent graphic EQ bandwidth, see API's 560 documentation. For a software example of frequency, gain and Q controls, see FabFilter's band-control documentation.
