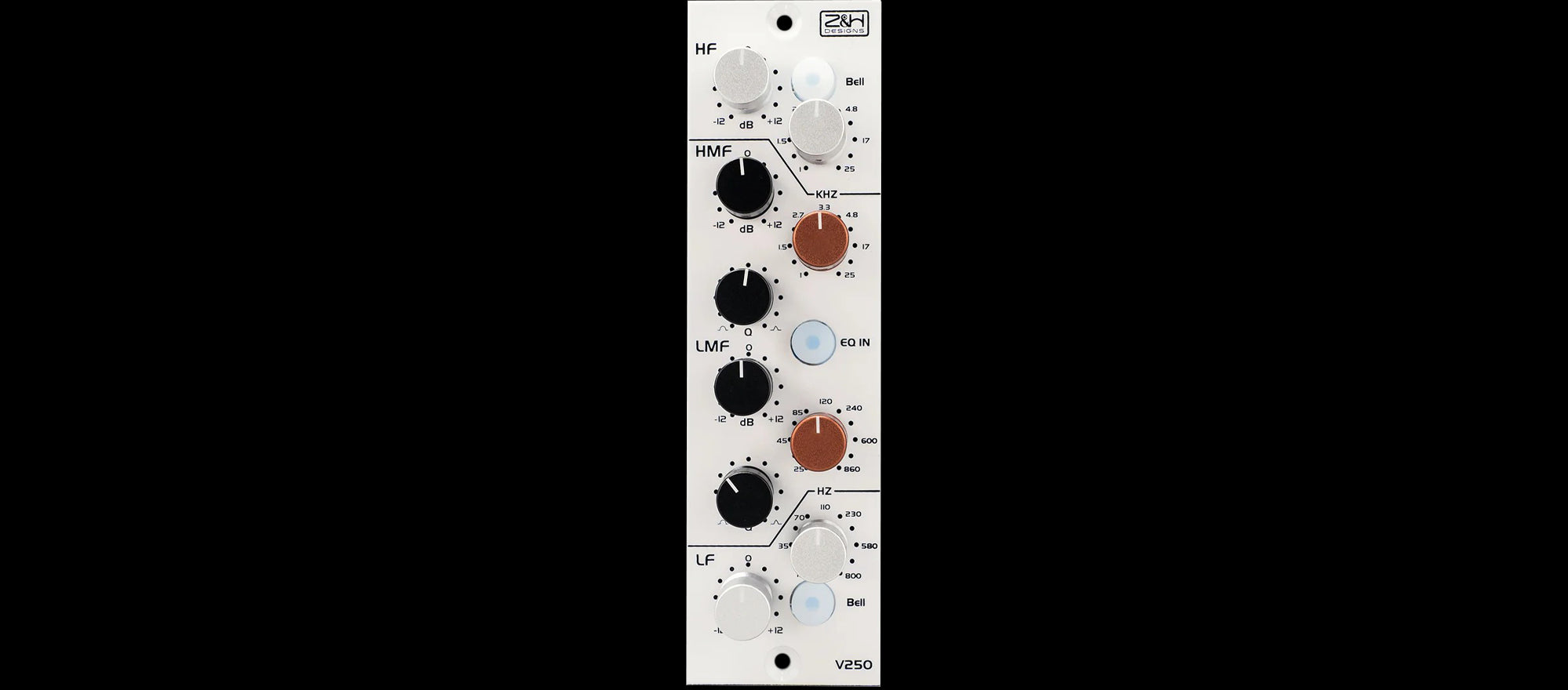

V250 Parametric EQ
In many cases, we didn't realise a sound could be better until V250 is on. We use 2 V250 units in our commercial studio to handle additional clean-ups beyond the HVC250 (which is our full version of Sontec revive). It is capable of giving clarity to acoustic and vocals, helping reach their full potential without sounding engineered.
- Clean & natural sounding.
- Same workflow as the original Sontec MEP-250.
- 4 parametric bands.
- Shelf option on HF and LF.
- Q knob on HMF and LMF.
- ±12 dB capability.
- Special colour available.
- Worldwide free shipping
- 5-year warranty
![](http://zhdesigns.audio/cdn/shop/files/V250_Staging.jpg?v=1716997236&width=3000)

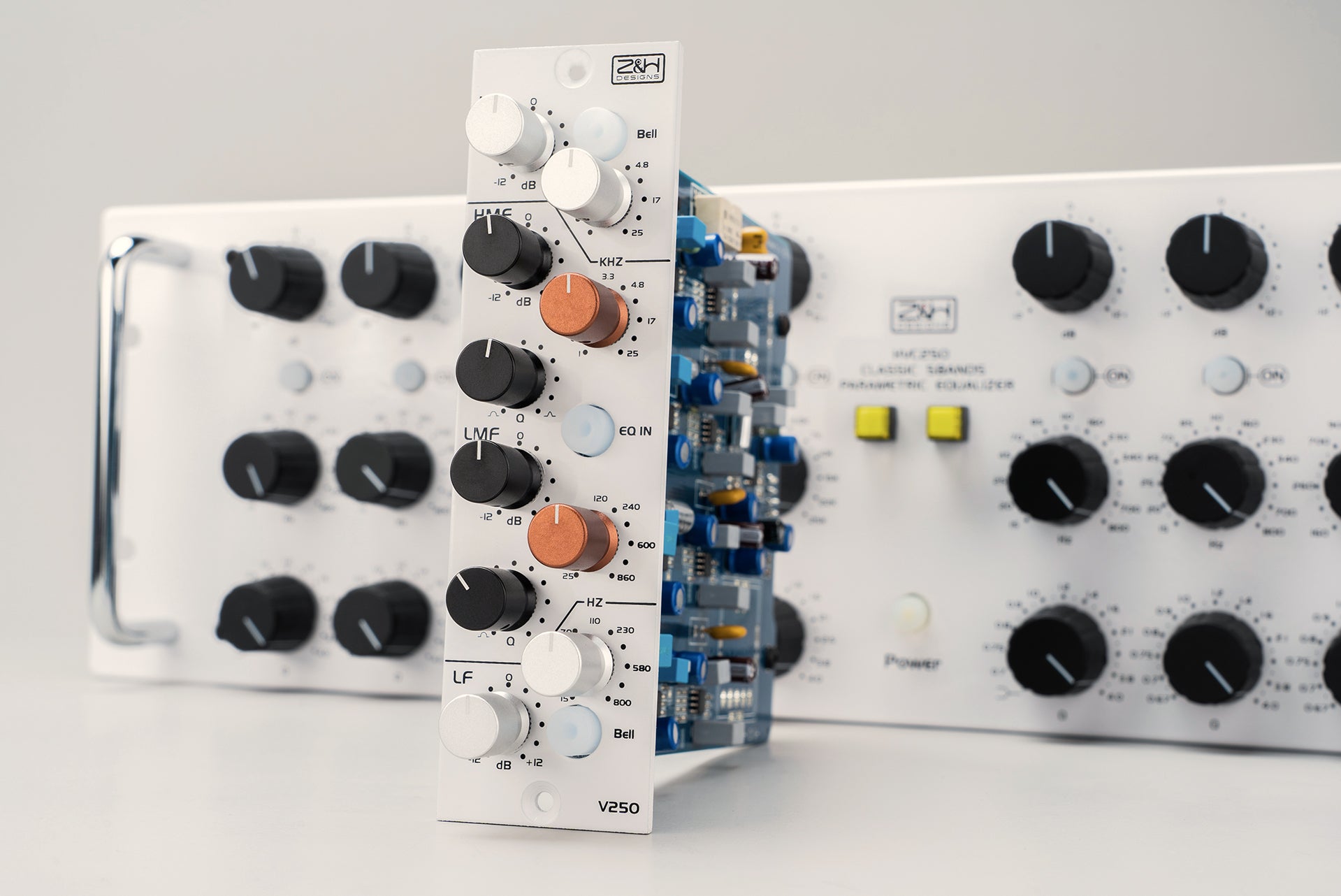

The compact EQ you can count on
When downsizing a classic design, it makes more sense to us to prioritise the sound than to create look-alikes. We needed more room to inherit the sonic performance of Sontec, so one band was gotten rid of. We also eliminated the Q controls on the air and sub, considering that most people solely use them for the high & low stuff.
In real-life, we find it sufficient controls. If any, it is the incredibleness that Sontec sound could come in a small package as such.
![](http://zhdesigns.audio/cdn/shop/files/About_Back_3_-_frame_at_0m1s.jpg?v=1716997639&width=3000)

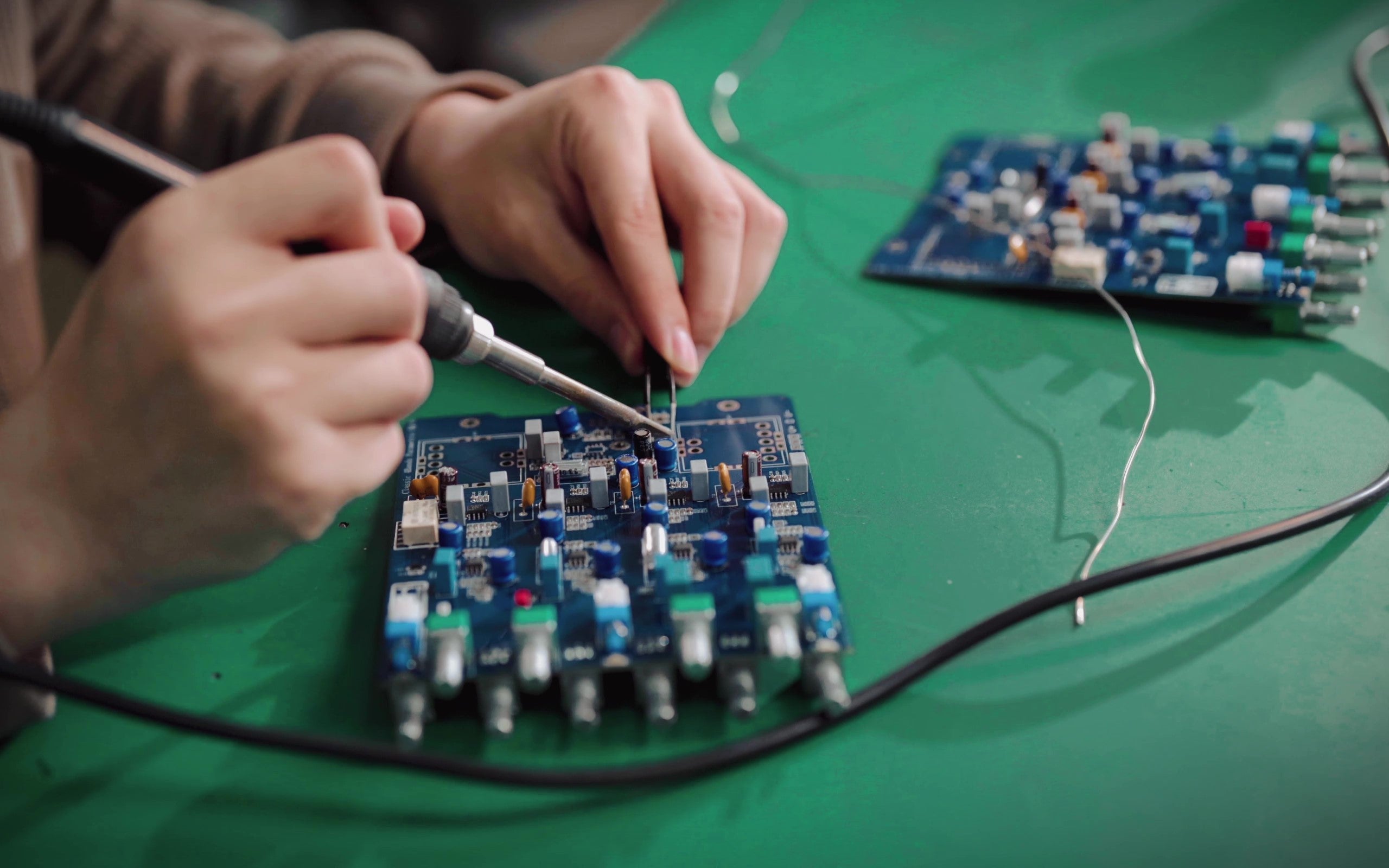

Handcrafted & verified by human, for human.
Before it gets shipped, 2 real mixing engineers will test it and sign their names, so will every craftsman who participated in the making. Boutique-grade craftsmanship makes no effort in producing many.
Specs
Frequency range |
20Hz - 20kHz
|
SNR |
-83dBV
|
Form factor |
Single channel, 4 bands: fully parametric
|
LF |
15Hz - 800Hz
Bell or shelf
12dB boost/cut
|
LMF |
25Hz - 860Hz |
HMF | 1kHZ - 25kHz Q: 0.4 - 4 12dB boost/cut |
HF | 1kHz - 25kHz Bell or shelf 12dB boost/cut |
Distortion (left & right channel off) | 0.0029% |
Distortion (left & right channel on) | 0.0085% (20-20kHz) |
Chassis size (H×W×D) | 6.7" (169mm) × 5.2" (133mm) × 1.5" (37.7mm) |
Panel Size (H×W) | 5.2" (133mm) × 1.5" (37.7mm) |
Last updated: 17/06/2024
Downloads
Specifications
Available soon
User's Manual
Coming soon
Setup Sheet
Coming soon
Demo Audio
For reference only. Any other purposes are prohibited. See Terms of Service.
