Shipping Dimensions (H × W × D)
|
11.8'' (30.0 cm) x 2'0.4'' (62.0 cm) x 1'4.9'' (43.0 cm) |
|
Shipping Weight
|
20.9lbs (9.5kg)
|
Last updated: 22/09/2024

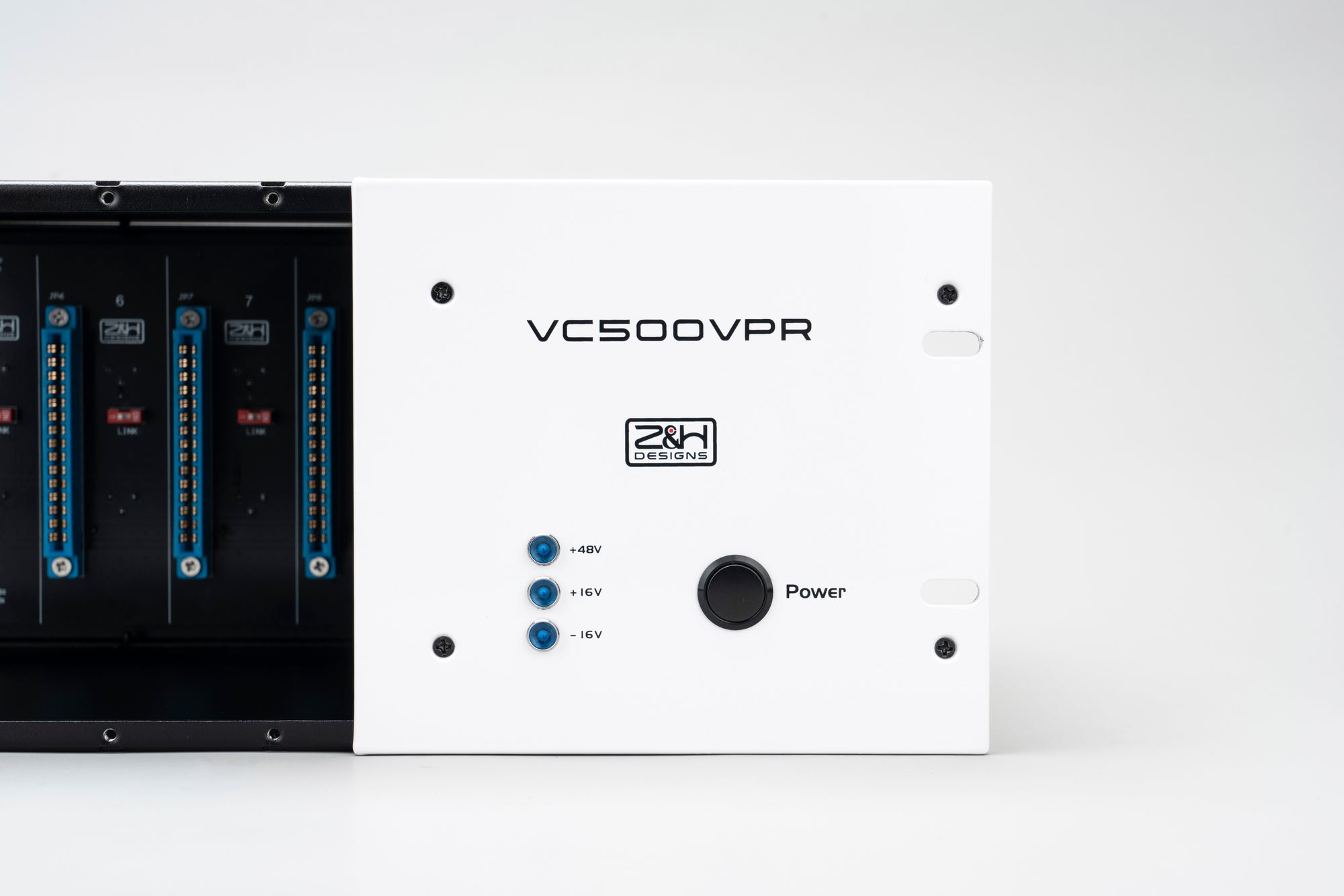

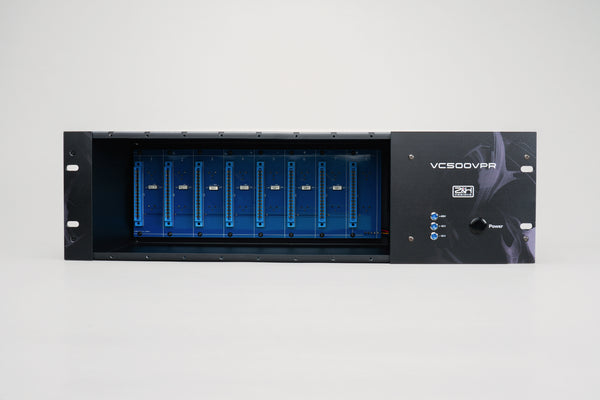

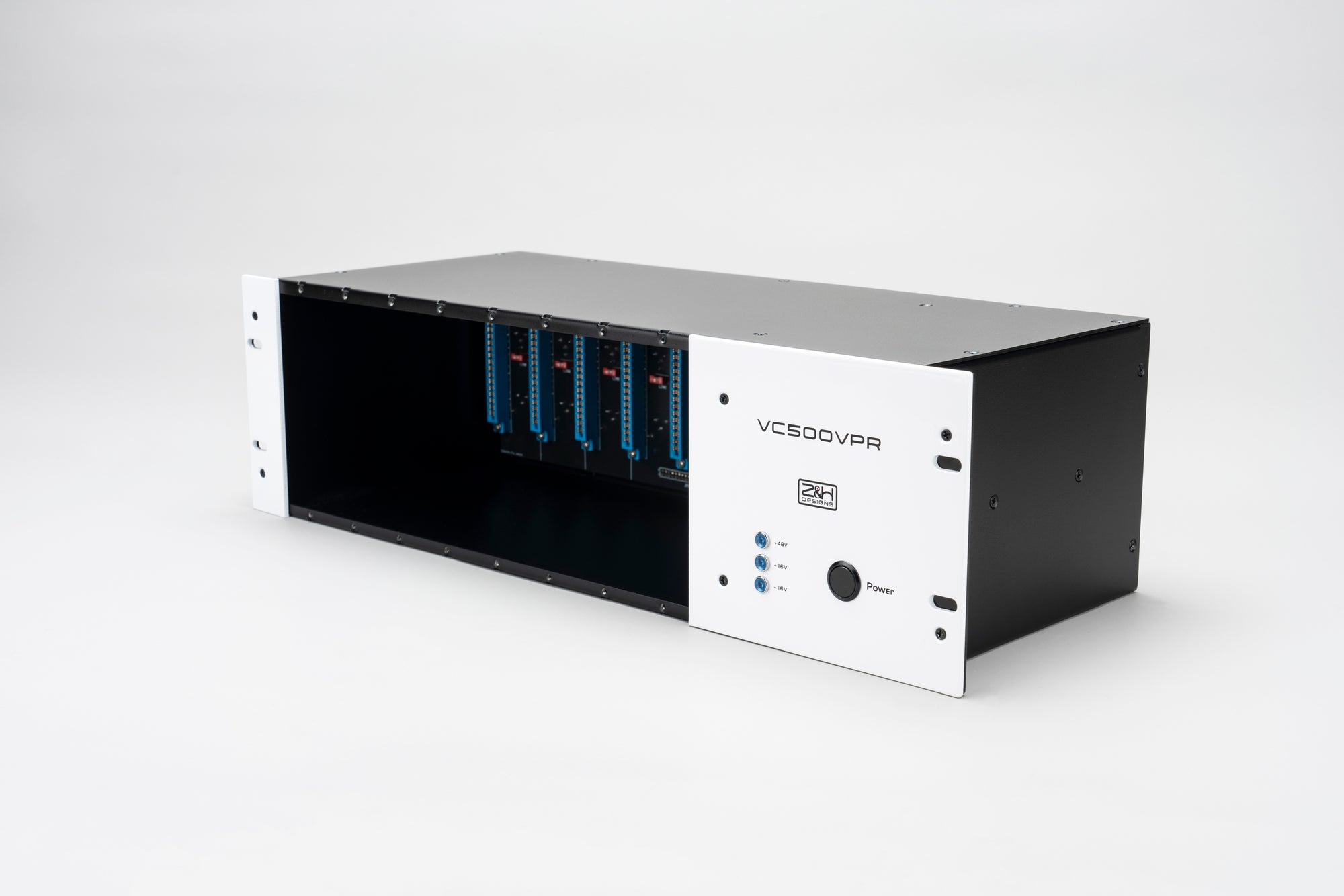

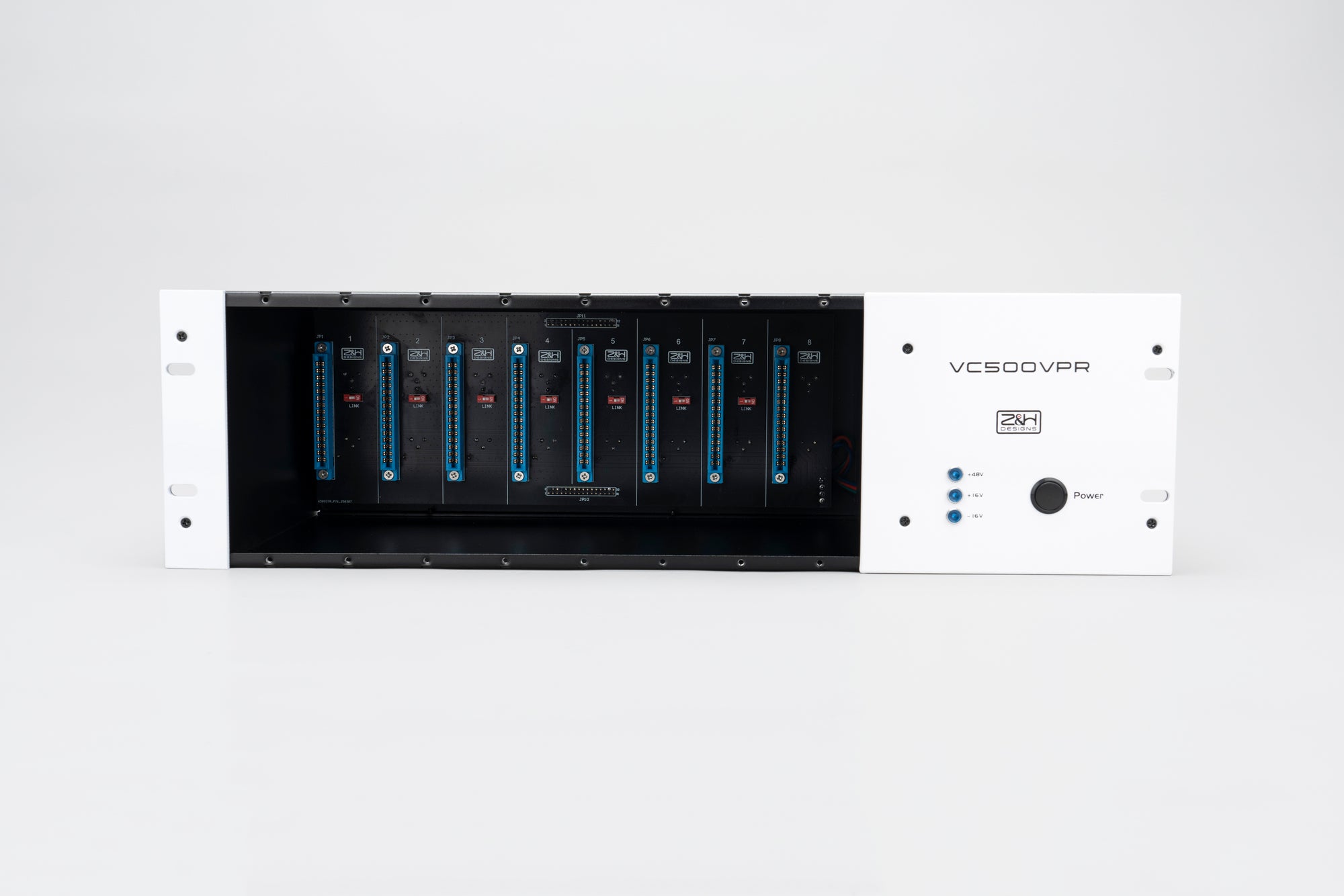

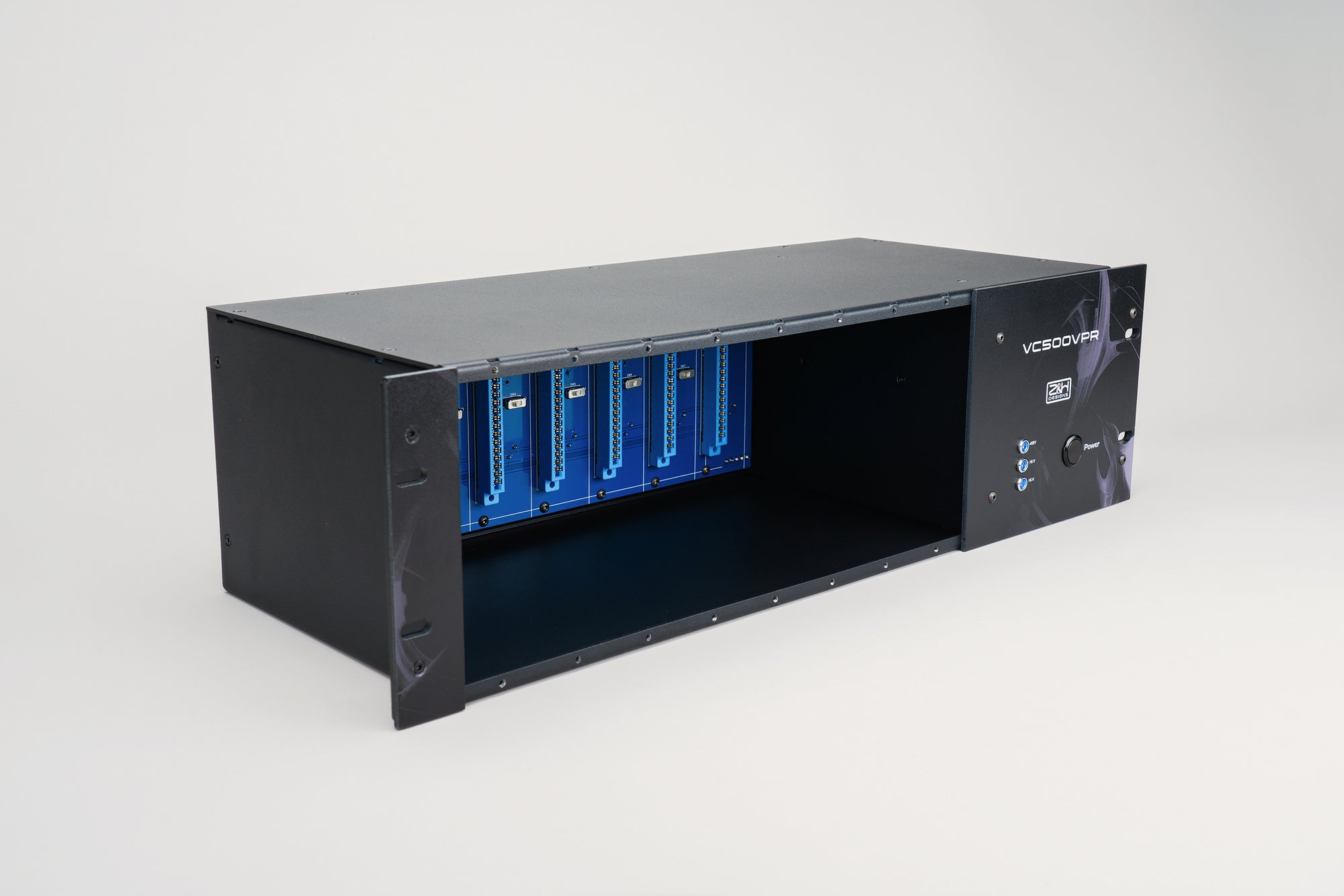

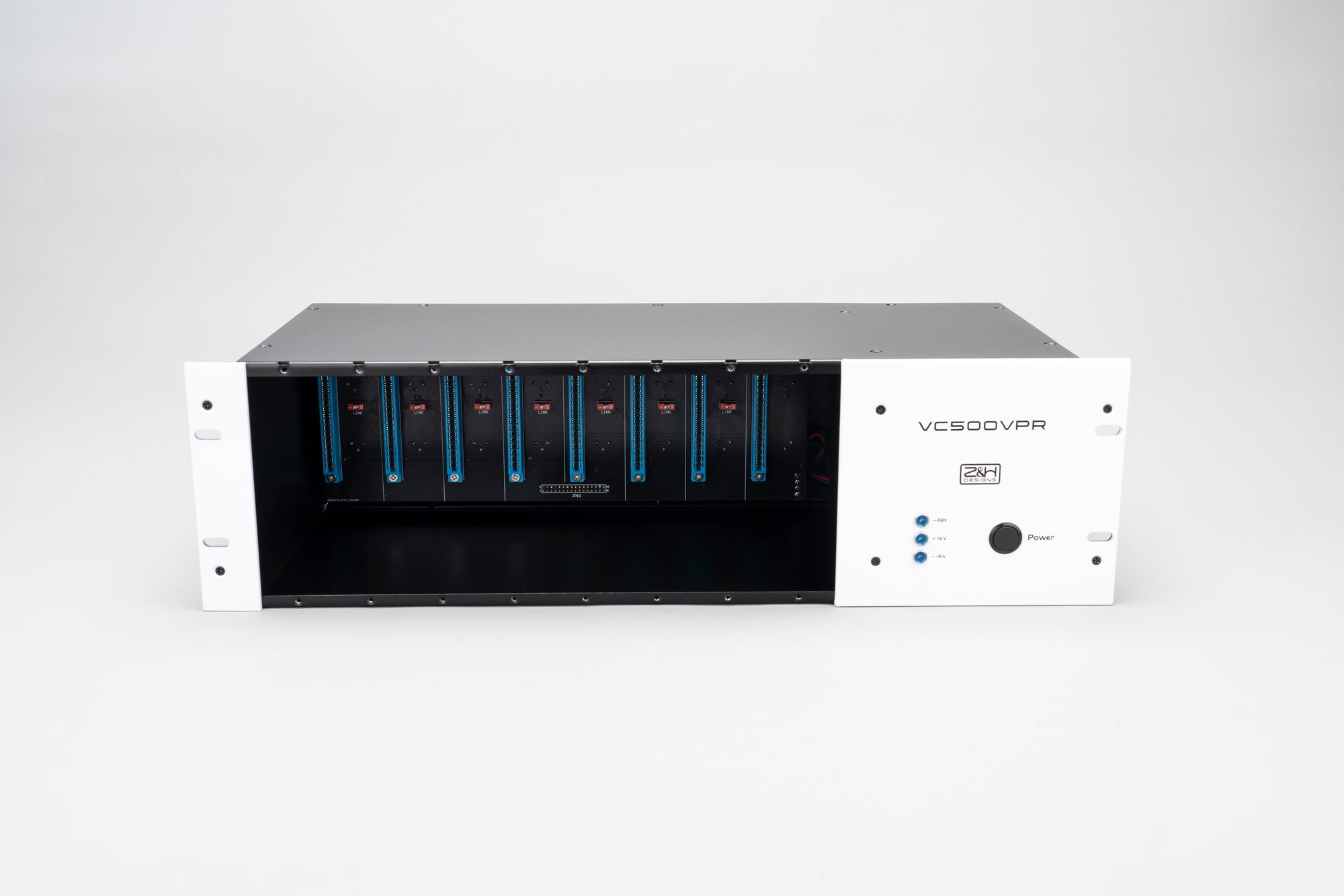

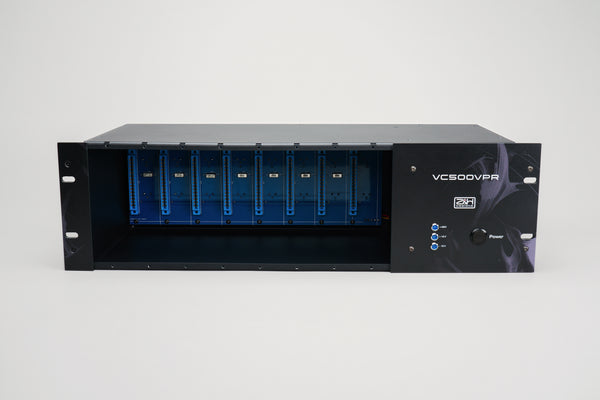

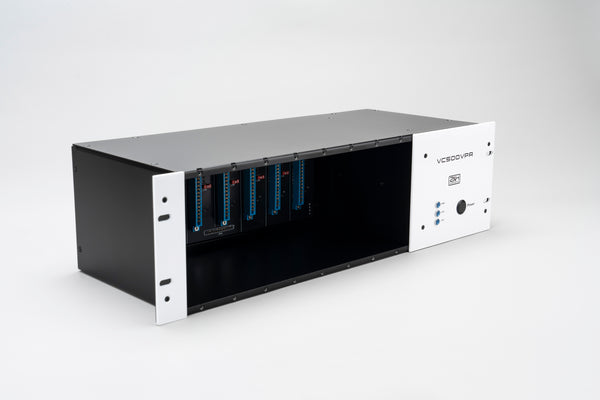

VC500VPR 8-Slot 500 Series Power Rack V2
Legend Revive
Linear PSU
500 Series
Customisable bundle offer
With solid construction and top-notch components, the VC500VPR Power Rack gives you peace-of-mind while accommodating your favourite 500 series modules in an 8-slot package.
Equipped with Neutrik gold-plated XLR ports for superior connectivity, a linear power supply for reduced noise, and an impressive 80W output, the VC500VPR delivers pristine audio quality. It also comes with channel linking toggle switches for stereo processing.
- API 500 series compatible
- 8 slots available
- DB25 connector available
- Neutrik gold-plated XLR ports from Switzerland

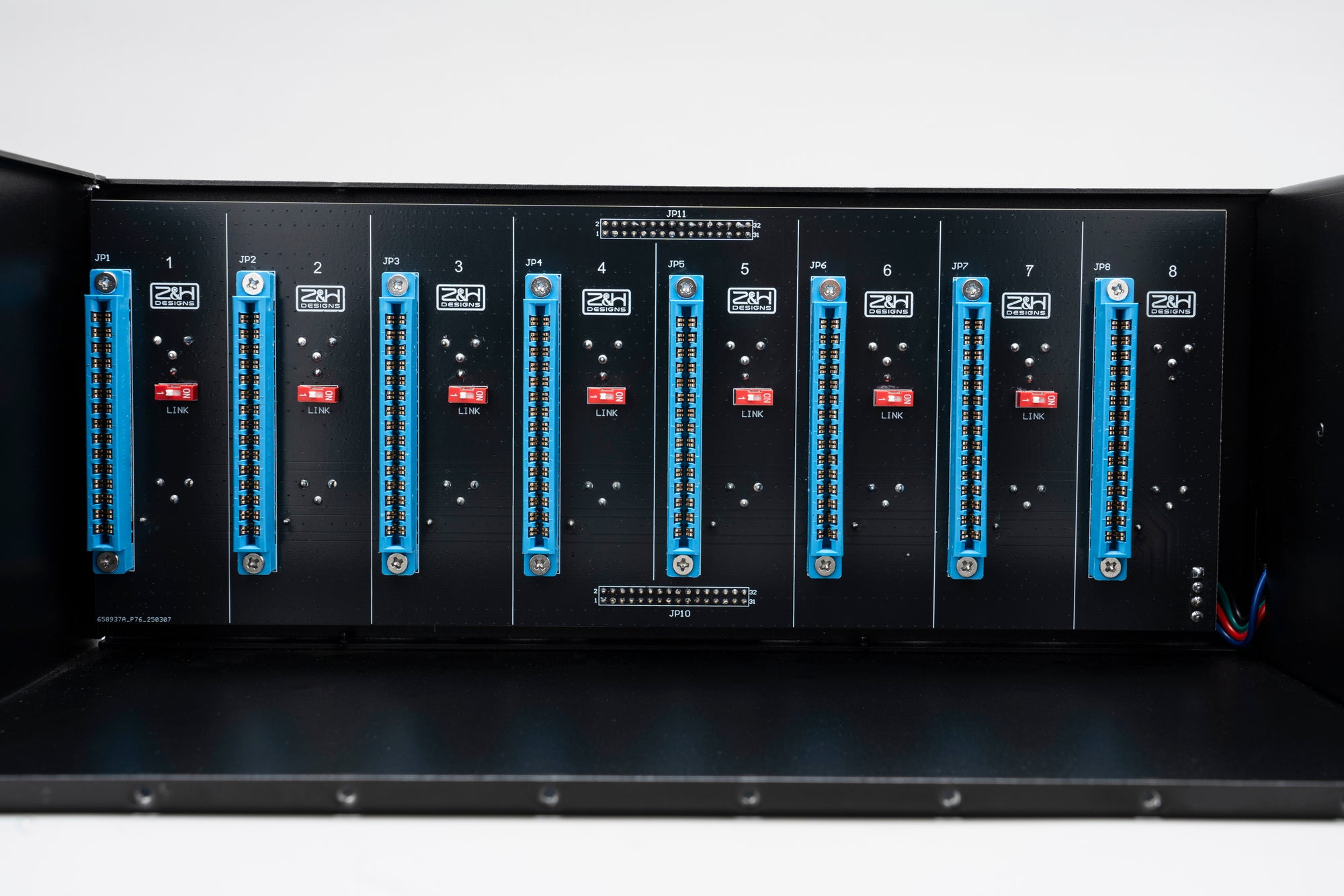

- Channel linking switches
- Standard 19-inch rack mount
- Clean and reliable linear power supply
- 80W output
- Up to 4.5A in total or 560mA (9W) per slot, whichever is reached first.
- UV printed panel
- Worldwide free shipping
- 5-year warranty
- 14-day tryout & satisfaction guarantee
- Ship by the end of August 2025
Ready to ship
Only 0 in stock
Comes with 8 pieces of blank panels for any unfilled module bays. These panels help preserve optimal airflow and dust protection while maintaining a clean, professional appearance for your rack.
There's literal gold on it
As expensive as it sounds, the gold plated contacts in the XLR ports are superb due to their resistance to corrosion and high conductivity. The whole rack is built with components that match this quality.

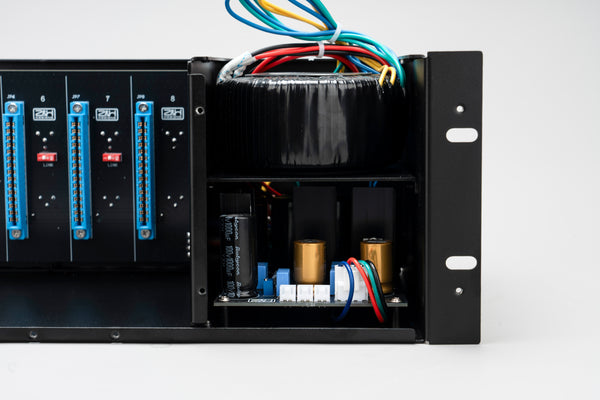

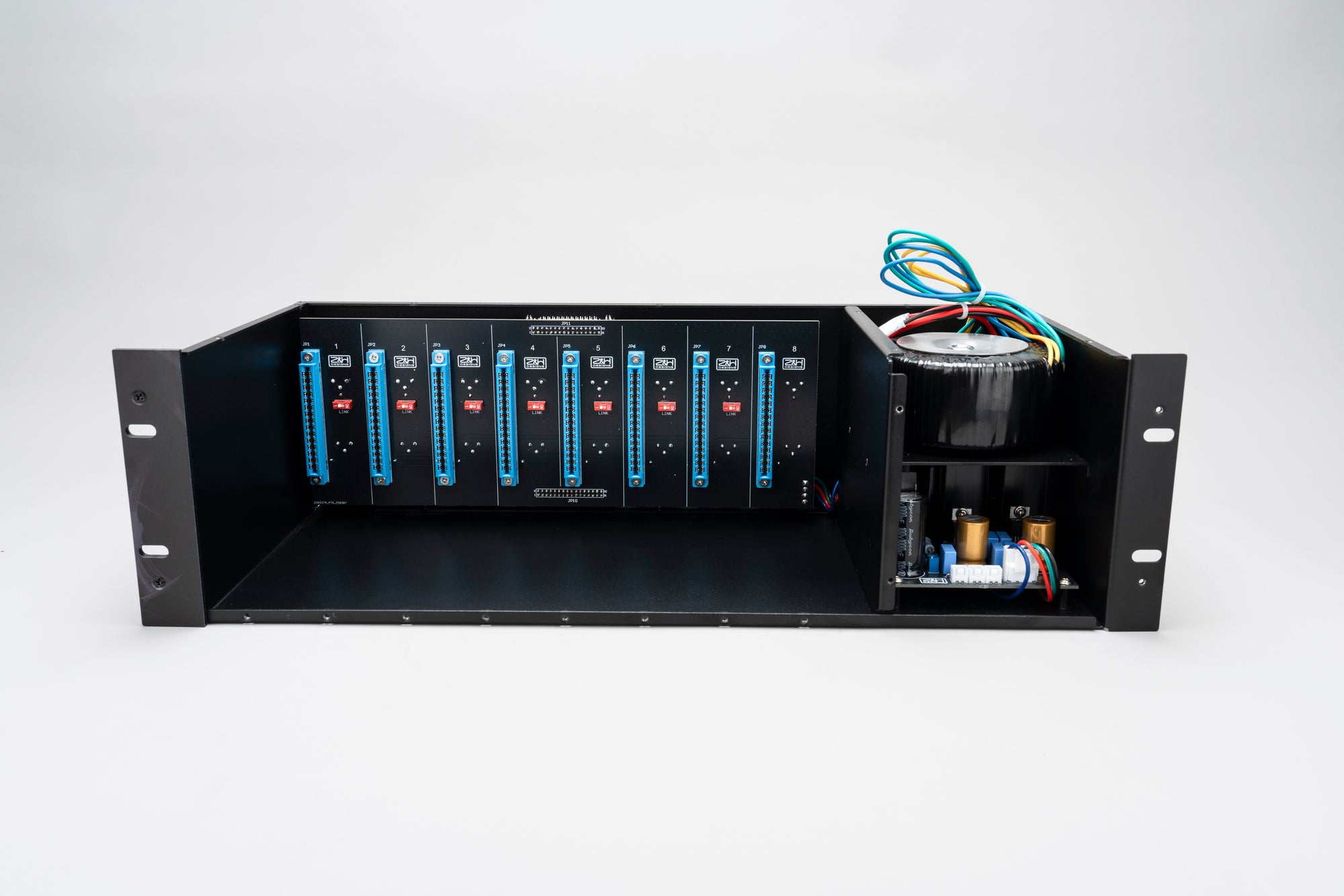

Linear Power Supply
VC500VPR offers linear power supply all-around. It benefits 500 series units by eliminating ripple noises.
DB25 Connector
Features DB25 connectors for both inputs and outputs, built to the TASCAM standard widely shared by systems such as AVID. These multi-pin connections provide balanced +4 dBu interfacing for eight channels each, running in parallel with the gold-plated XLR ports on the unit. This design allows signals to be routed through either DB25 or XLR simultaneously, effectively enabling the VC500VPR to operate as a DB25 converter in full line-level setups.
Handcrafted & verified by human, for human.
Before it gets shipped, 2 real mixing engineers will test it and sign their names, so will every craftsman who participated in the making. Boutique-grade craftsmanship makes no effort in producing many.
14-day tryout & satisfaction guarantee
With all the hopes that you would be happy with our product, if you are not completely satisfied with your purchase for any reason, you may return it to us for a full refund. You have 14 days to try out the unit after receiving your item to request a return. Read our refund policy for more details.
Proud 5-year warranty
We offer a 5-year warranty to all our pro audio gear. Within the warranty period, if a product suffers from a defect, you are welcomed to let us cover the cost to repair, which will be conducted by the nearest designated service center.
Timely service & support
Say goodbye to months of waiting - we fix most issues within 14 days thanks to our comprehensive technical support and the expanding global network of repair centers. Affordable replacement parts are provided for any damages or accidents throughout the lifetime of your unit.
