This comprehensive technical analysis examines the engineering differences between UREI 1176 and 1178 vintage FET compressors from circuit design, component selection, control loop architecture, and audio performance perspectives. Based on detailed technical documentation and professional engineering analysis, this guide provides accurate reference material for audio engineers, recording studio professionals, and vintage audio equipment enthusiasts comparing these legendary peak limiters and their applications in modern professional audio production.
Fundamental Design Philosophy: Vintage FET Compressor Engineering Approaches
UREI 1176 Peak Limiter: A legendary mono FET compressor designed for characterful shaping of individual audio sources in professional recording studios. Its core appeal stems from the ultra-fast FET-based gain reduction circuit and Bill Putnam's renowned Class-A discrete push-pull output amplifier design. Both input and output stages utilize transformer coupling, giving the 1176 compressor distinctive harmonic coloration capabilities. Even without active compression, audio signals passing through its vintage circuitry exhibit audible harmonic distortion and the characteristic "warm" analog sound that made it an industry standard for vocal recording, drum processing, and bass guitar enhancement in professional studios worldwide.
UREI 1178 Stereo Peak Limiter: A professional dual-channel stereo FET compressor engineered specifically for stereo signal processing applications in broadcast and mastering environments where absolutely stable stereo imaging is critical. The 1178's design philosophy evolved from the 1176's "character shaping" approach to "precision control" methodology. Through sophisticated sidechain circuit linking between both channels, the stereo compressor ensures that when either left or right channel triggers compression, both channels receive identical gain reduction amounts, completely preventing stereo image shift that can compromise professional mix quality in mastering and broadcast applications.
FET Gain Control Implementation: Discrete vs Monolithic Dual FET Architecture
FET Component Selection and Stereo Matching Technology
Key Technical Differences in Professional FET Compressor Implementation:
- UREI 1176: Discrete FET components requiring manual selection and matching; stereo pairing of two 1176 units extremely challenging for professional stereo applications
- UREI 1178: Monolithic dual FET (NPD5566/2N5566) manufactured on single silicon substrate; inherently matched electrical and thermal characteristics for precise stereo compression
1176 Discrete FET Architecture for Professional Audio: The UREI 1176 compressor utilizes a single discrete JFET (Junction Field-Effect Transistor) as a voltage-controlled resistor (VVR) for gain reduction in professional audio applications. Semiconductor manufacturing tolerances inherent in FET production mean that even devices from the same production batch exhibit individual variations in critical electrical characteristics including threshold voltage, transconductance, and temperature coefficients. To ensure each 1176 peak limiter met strict factory performance standards for professional recording studio use, UREI engineers manually selected and matched FET components during production. Despite this quality control process, achieving perfect stereo pairing between two separate 1176 units for professional stereo applications remained technically challenging due to component variations affecting stereo imaging precision.
1178 Monolithic Dual FET Innovation for Stereo Processing: The UREI 1178 stereo compressor employs an advanced monolithic dual FET design (specifically the NPD5566 or equivalent 2N5566) where two independent FET elements are fabricated simultaneously on a single silicon substrate during semiconductor manufacturing. This precision engineering approach ensures both FET elements experience identical physical and chemical processing conditions, resulting in near-perfect electrical and thermal characteristic matching. This innovative dual FET architecture proved crucial for professional stereo compression applications, guaranteeing that when the 1178's sophisticated sidechain detection circuit delivers unified control voltage to both channels, the left and right FETs respond with identical gain reduction characteristics, achieving transparent stereo compression without image shift in mastering and broadcast environments.
Professional Stereo Processing Control Voltage Distribution Architecture
|
Professional Audio Characteristic
|
UREI 1176 | UREI 1178 |
|---|---|---|
| FET Component Type |
Single Discrete JFET
|
Monolithic Dual JFET (NPD5566)
|
| Stereo Channel Matching |
Requires External 1176SA Stereo Adapter
|
Built-in Stereo Linking for Professional Applications
|
| Control Voltage Consistency |
Dependent on Component Pairing Precision
|
Structurally Guaranteed Stereo Precision
|
| Temperature Drift Stability |
Dual Units May Drift Asynchronously
|
Synchronized Drift Maintains Stable Stereo Imaging
|
Amplifier Topology and Output Stage Design: Class-A vs Class-AB Performance Comparison
Technical Impact of Class-A vs Class-AB Amplification in Professional Audio
Professional Audio Engineering Amplifier Class Fundamentals:
- Class-A Amplification: Amplifying element remains conducting at all times with large quiescent current even without input signal. Advantages: Exceptional linearity, zero crossover distortion, excellent transient response for professional audio. Disadvantages: Extremely inefficient, generates significant heat. Audio characteristics: Rich even-order harmonic distortion producing "warm," "full," "musical" sound favored in professional recording.
- Class-AB Amplification: Push-pull design with two elements handling positive and negative signal halves, used for efficient professional audio amplification. Advantages: Much higher efficiency than Class-A, achieves extremely low distortion suitable for mastering applications. Disadvantages: More complex circuit design requirements. Audio characteristics: Pursues "high-fidelity" reproduction, generally "cleaner" and "more transparent" in professional broadcast and mastering applications.
1176 Professional Character Processing Class-A Push-Pull Output Stage
The UREI 1176 LN's output stage represents the core of its legendary professional audio character. This Class-A push-pull amplifier circuit based on discrete transistors and coupled through the large B11148 output transformer defines the final signal path characteristics. The entire final portion of the professional audio signal path is driven by this characterful Class-A amplifier stage. Regardless of compression settings, any professional audio signal passing through the 1176 is "processed" by this distinctive stage. When engineers increase input gain in professional recording applications, they simultaneously drive both the FET compression circuit and push this Class-A output stage into a more saturated state, generating additional harmonic distortion that contributes to the 1176's signature sound in professional vocal recording and drum processing applications.
1178 Professional Stereo Applications Class-AB Linear Design
To achieve the high channel consistency and low self-noise required for professional stereo applications, the UREI 1178's signal amplification stages extensively feature integrated circuit operational amplifiers. The output stage utilizes an op-amp controlling a pair of push-pull transistors operating in a more efficient and linear Class-AB state, optimized for professional audio reproduction. This design approach prioritizes faithful reproduction for professional mastering and broadcast applications. The amplification system's primary function is to cleanly and powerfully amplify audio signals without adding extra coloration. In the 1178, sonic character derives primarily from the FET compression element itself, while the amplifier circuitry maintains maximum "transparency" essential for professional stereo processing and mastering applications where source material integrity is critical.
Professional Audio Compression Characteristics and Distortion Analysis
Time Constants and Compression Curves in Professional Applications
| Professional Audio Parameter | UREI 1176 | UREI 1178 | Professional Application Notes |
|---|---|---|---|
| Attack Time Range | 20μs - 800μs | 20μs - 800μs | Continuously variable for professional dynamic control |
| Release Time Range | 50ms - 1.1s | 50ms - 1.1s | Continuously variable musical release characteristics |
| Compression Ratios | 4:1, 8:1, 12:1, 20:1, All-Buttons Mode | 4:1, 8:1, 12:1, 20:1 | 1176 features unique All-Buttons mode for extreme compression effects |
| Threshold Control | Fixed threshold, adjusted via Input control | Fixed threshold, adjusted via Input control | Both professional units lack independent threshold control |
Professional Audio Distortion Characteristics and Harmonic Analysis
Quantified Professional Audio Distortion Metrics:
- Standard THD Performance: Both units achieve ≤0.5% THD at release time 1.1s within 50Hz-15kHz bandwidth, suitable for professional applications
- Signal-to-Noise Ratio: Both exceed >81dB SNR at threshold (30Hz-18kHz), suitable for professional recording and mastering
-
Maximum Output Capability: 1176 approximately +22dBm, 1178 achieves +24dBm@600Ω, suitable for professional line levels
UREI 1176 Professional Audio Distortion Sources: The 1176's characteristic distortion in professional applications stems from two primary sources: inherent FET distortion during heavy gain reduction operations, and more significantly, level-dependent harmonic distortion from the Class-A discrete output stage. This distortion is widely considered "musical" in professional recording applications, adding desirable saturation and "body" to audio sources. Professional engineers specifically utilize this harmonic enhancement for vocal recording, drum processing, and bass applications where the 1176's characteristic even-order harmonics contribute to achieving desired professional sound aesthetics.
UREI 1178 Professional Audio Distortion Control: Due to its advanced IC-based signal path and Class-AB output design optimized for professional applications, the 1178 exhibits significantly lower self-noise and distortion floor compared to the 1176LN. The audio characteristics are more "hi-fi," suitable for professional mastering applications. With minimal or no compression engaged, the 1178 alters original source material tonality far less than the 1176, making it ideal for professional stereo bus processing and mastering where transparency is critical. The 1178's distortion characteristics derive primarily from the FET compression element itself rather than additional coloration from amplifier circuitry, ensuring professional-grade transparency.
Frequency Response and Phase Characteristics in Professional Audio Systems
Transformer Coupling vs Electronic Balancing for Professional Applications
UREI 1176 Professional Character Transformer Configuration: Both input and output stages employ transformer coupling in the professional audio signal path. The input transformer's interaction with the Class-A feedback network creates subtle architecture-related response characteristics at ultra-low and ultra-high frequencies. The B11148 output transformer exhibits slight high-frequency enhancement characteristics that, while maintaining professional audio specifications, contribute to defining the 1176's characteristic overall tonal signature in professional recording applications.
UREI 1178 Professional Precision Electronic Balancing Design: The front end utilizes transformerless differential amplifier architecture with extensive use of integrated op-amp modules throughout the professional signal chain. The output features "floating, transformer-isolated" design with +24dBm maximum output capability suitable for professional line levels. The front-end "transformerless input" IC differential structure provides fewer sources of low-frequency phase lag and magnetization nonlinearity, achieving the flat, consistent matched frequency response and phase characteristics required for professional stereo processing and mastering applications.
| Professional Audio Frequency Response | UREI 1176 | UREI 1178 |
|---|---|---|
| Nominal Frequency Response | 20Hz-20kHz ±1dB | 20Hz-20kHz ±1dB |
| Input Coupling Method | Professional Transformer Coupling | Electronic Differential Balancing |
| Output Coupling Method | Professional Transformer Isolation | Professional Transformer Isolation |
| Phase Linearity Performance | Magnetic Component Characteristics | Enhanced Linearity for Professional Stereo |
| Extreme Frequency Response | Subtle Architecture-Related Variations | Flatter Response for Professional Applications |
Stereo Processing and Professional System Integration
Professional Audio Engineering Stereo Linking Mechanisms
UREI 1178 Built-in Professional Stereo Solution: When the front panel STEREO switch is engaged, the gain restoration amplifiers of both limiters are connected, with the channel having larger peak signals driving a unified control voltage system, thus applying equal gain reduction to both channels simultaneously. During professional STEREO operation, the control voltages of both channels are directly connected, fundamentally preventing stereo image drift and left-right imbalance that could compromise professional mix integrity in mastering and broadcast applications. This professional stereo linking ensures the absolute stereo image stability required for high-end professional audio production.
UREI 1176 External Adapter Professional Solution: Originally designed as mono units for individual source processing, stereo operation requires external 1176SA linking adapters for professional stereo applications. However, due to discrete FET and passive component variations, temperature drift effects, and calibration tolerances, precise channel tracking heavily depends on strict professional pairing procedures, regular calibration maintenance, and stable operational conditions. In professional practice, this configuration proves more susceptible to subtle stereo image movement and soundstage density changes that can affect professional stereo imaging precision.
Professional Stereo Image Stability Quantified Metrics
Professional Audio Engineering Measurement Recommendations:
- Channel Tracking Error Analysis: Measure left-right channel gain reduction differences under identical sidechain voltage conditions
- Stereo Image Drift Testing: Utilize center-positioned signals to test phase difference changes before and after compression processing
- Temperature Stability Assessment: Measure channel consistency changes across different operating temperature ranges
Professional Application Scenarios and Technical Selection Guidelines
Professional Audio Application Recommendations Based on Technical Characteristics
| Professional Audio Application | Recommended Model | Technical Rationale |
|---|---|---|
| Professional Vocal Recording | UREI 1176 | Class-A harmonic enhancement with fast attack dynamic control |
| Individual Drum Track Processing | UREI 1176 | Transient shaping capability with punch enhancement |
| Professional Stereo Piano Recording | UREI 1178 | Stereo image stability with transparent dynamic control |
| Professional Mix Bus Processing | UREI 1178 | Dual-channel consistency with high output headroom |
| Professional Mastering Applications | UREI 1178 | Transparent limiting with enhanced phase linearity |
| Professional Bass Guitar Processing | UREI 1176 | Harmonic enhancement with precise dynamic control |
Modern Professional Audio Equipment Enhancements

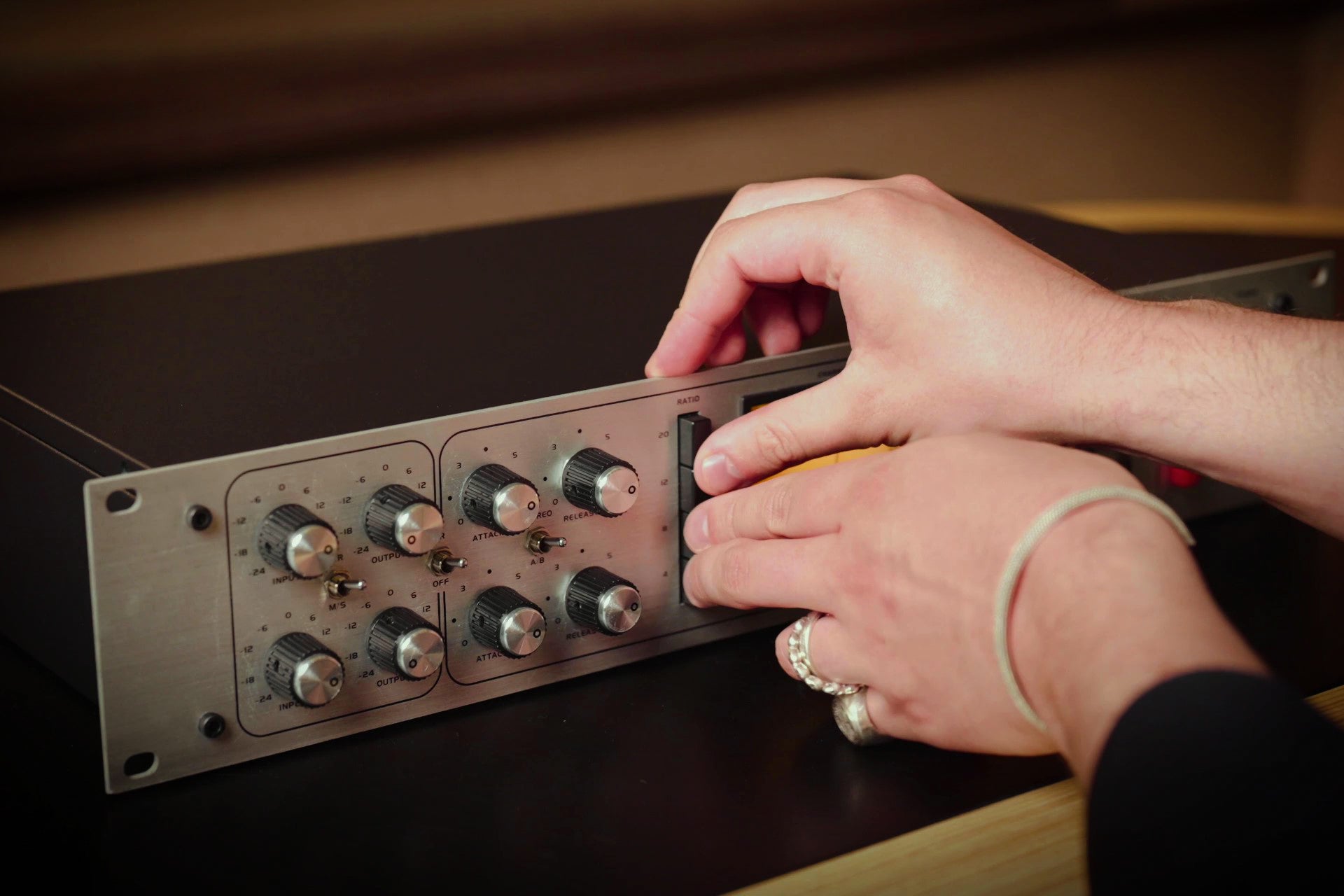

Z&H Designs 1178 Modern Professional Enhancements: While maintaining authentic sound characteristics of original NPD5566 FET transistors for vintage compressor authenticity, modern recreations incorporate advanced professional features including M/S (Mid-Side) processing capability, blend control functionality, and sidechain filtering options. These technical improvements expand the application range of traditional 1178 architecture for contemporary professional audio production, enabling enhanced creative control for complex modern professional mixing and mastering applications while preserving the essential vintage FET compressor characteristics that defined the classic UREI sound.
Professional Audio Measurement and Verification Methodology
Professional Compression Characteristics Testing Protocol:
- Static Transfer Function Analysis: 1kHz sine wave level sweeps recording input-to-output curves for professional calibration
- Time Constant Verification: Step response signal testing to verify attack/release timing accuracy for professional applications
- Frequency-Dependent Compression Analysis: Multi-frequency compression behavior variations for professional frequency response characterization
Professional Audio Distortion Analysis Protocol:
- THD+N Measurement Protocol: Harmonic distortion analysis across multiple compression depths for professional specifications
- Spectral Analysis Procedures: H2/H3/H4 specific harmonic component analysis for professional audio engineering
- Intermodulation Distortion Testing: Dual-tone testing to verify nonlinear characteristics in professional audio applications
Professional Audio Engineering Conclusions and Selection Recommendations
Professional Audio Technical Summary: UREI 1176 and 1178 represent fundamentally different design philosophies and technical approaches for professional audio applications. The 1176 achieves unique tonal characteristics through discrete FET architecture, Class-A output amplification, and transformer coupling, making it ideally suited for creative processing of individual mono sources in professional recording environments. The 1178 achieves precise stereo control through monolithic dual FET implementation, Class-AB linear output design, and electronic balanced input stages, making it the preferred choice for professional bus processing and mastering applications where stereo precision and transparency are critical.
Professional Audio Selection Guidelines: From a technical engineering perspective, selection should be determined by specific professional audio requirements: choose the UREI 1176 when individual source materials in professional recording applications require characterful processing and harmonic enhancement; choose the UREI 1178 when professional mix bus processing and mastering applications demand transparent control and stereo precision. Modern recreations of these classic designs provide enhanced reliability and extended functionality while maintaining the original vintage audio equipment characteristics that made these units legendary in professional audio engineering applications.
Source:
https://d00120714.wordpress.com/2013/05/02/urei-1176/
https://www.retrosonicproaudio.com/product/urei-1178-stereo-limiter
https://www.icdrex.com/understanding-the-pin-configuration-of-the-2n5457-transistor/
https://www.manotoh.com/a-47558571/linear-ic-s/npd5566/
Urei 1176 Manual
Urei 1178 Manual
Image Copyright Notice: All images used in this technical analysis are utilized under Fair Use provisions for educational, technical review, and analysis purposes. Original copyrights remain with their respective owners. No commercial use is intended. If copyright infringement occurs, please contact us for removal.
