Fast, assertive FET behavior when the compression itself should be part of the sound.
Why It Matters
Four things that define the 1178 page
Moves the unit beyond clone behavior and into modern stereo-image workflow territory.
Keeps low end from over-driving the detector when movement matters more than raw grab.
Makes it easier to keep the 1178 tone while dialing back full wet density for modern parallel-style decisions.

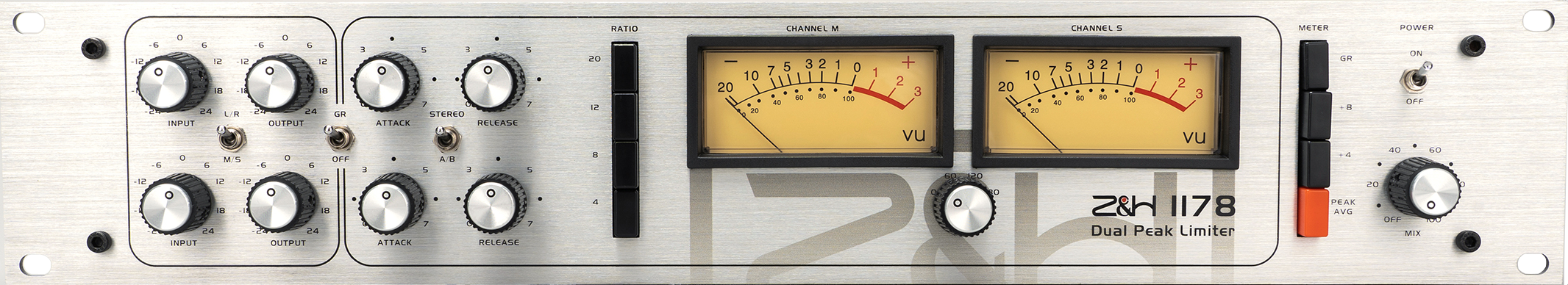

Interactive Manual
Read the front panel by workflow, not by paragraph
Set timing by movement. Preserve impact with attack, then tune release by how the source breathes back into the groove.
One of the strongest reasons to open this guide in web form instead of staying in a PDF. This changes how you think about stereo workflow.
Use the mix knob when the compressor tone is right but full wet starts flattening the source more than the session wants.
Engage the sidechain HPF when low-frequency energy is making the detector overreact and pulling the action away from the musical target.
Quick Start
How to start without turning the 1178 into the wrong compressor
-
1
Confirm power and mains connection are correct before power-up, then decide whether the source actually wants fast FET control and attitude.
-
2
Remember that there is no threshold knob here. Input drive is what pushes the fixed-threshold circuit harder, so input level is part of the compression decision.
-
3
Choose stereo, dual-mono, or M/S-L/R logic first. The rest of the setup makes more sense once the image strategy is already chosen.
-
4
Start around 3 to 6 dB of gain reduction if you want moderate control. Push past 10 dB only when you actually want the limiter side of the 1178 personality.
-
5
Set attack and release by movement first, meter second. If the source goes flat too quickly, back off attack before assuming the whole idea is wrong.
-
6
Use sidechain HPF when low end is over-driving the detector, then use Mix when the compression tone is right but full wet is too committed.
The best way to meet the 1178 is not by reading every label first. Pick a source that still feels a bit too polite, do one simple move, and listen to what the compressor is actually changing.
Working Uses
Where owners usually discover what the 1178 is really for
One of the fastest ways to hear the 1178 make sense. Push it hard if you want explosion, then use Mix to keep the drum bus alive instead of crushed flat.
The unit is happiest when you let it do the exciting part first, then pull it back into the track. This is exactly why the onboard Mix control matters.
Useful when a vocal needs more edge, consistency, and density, but still has to stay mobile inside the mix instead of sounding pinned in place.
Sometimes the value is not even stereo linking. With independent attack and release, this can behave like two separate compressors or a more modern M/S control surface.
Working Notes
Notes that usually matter more after the first aggressive session
On the 1178, input is part of the compression decision. If the unit suddenly feels more aggressive, check drive before assuming the timing is wrong.
A release that is technically fast can still be musically wrong if the source never breathes back in time with the song.
If the source already works in linked stereo, stay there until you have a real image reason to move into dual-mono or M/S-L/R thinking.
When the compressor feels too heavy, check whether the low end is over-triggering the detector before rewriting the whole setup.
Blend tends to work best after the compression tone is already correct. It is usually a finishing move, not the core fix.
A good recall note for 1178 includes what the source started doing differently, not only the control positions.
Specs
Key Specs
Frequency Response
20Hz to 40kHz, +/-0.5dB typical (compressor and SFE bypassed, unloaded)
Maximum Output Level
+27dBu typical (compressor and SFE bypassed, unloaded)
THD+N
20Hz: <0.15% typical · 1kHz: <0.025% typical · 20kHz: <0.0075% typical at +20dBu
Threshold
-58dBu to +28dBu
Ratio
4:1, 8:1, 12:1, 20:1
Blend
0% to 100% compressor
Attack
20 microseconds to 800 microseconds
Release
50ms to 1.1s
AC Power Consumption
50 Watts max
Fuse
5 x 20mm 2A, fast acting, glass
Noise Floor
22Hz to 20kHz · SNR -86.3dBV
Global Voltage
Universal mains operation
Product Dimensions
3.5'' (8.8 cm) x 1'7.1'' (48.4 cm) x 10.8'' (27.4 cm)
Shipping Dimensions
8.8'' (22.3 cm) x 1'10.9'' (58.2 cm) x 1'5.9'' (45.4 cm)
Shipping Weight
20.9lbs (9.5kg)
Last Updated
22/09/2024
Owner FAQ
Questions that usually come up after the first few serious sessions
Threshold Where is the threshold on the 1178?
There is no dedicated threshold knob. Like the classic 1176 / 1178 approach, input drive is what pushes signal against a fixed threshold. If you turn the input up, you are effectively asking for more compression.
That is why very low input plus huge output does not behave like a properly driven 1178.
Gain Reduction How much gain reduction is a sane starting point?
Start around 3 to 6 dB if you want moderate control with clear 1178 tone. If you go to 10 dB or more, you are asking for the aggressive limiter side of the unit, which can be exactly right on drums or other excitement-heavy material.
Do not judge the unit too early if the first setting is either barely compressing or wildly overcommitted.
Attack / Release Why does the source go flat or strangely jumpy when I change attack and release?
A very fast attack can shave transients faster than the source wants, while a very fast release can bring ambience, cymbals, or room tone back up in a way that feels jumpy. On this unit, timing is part of the sound, not just a technical setting.
If it goes flat, back off attack first. If it starts breathing in an ugly way, slow release down before changing everything else.
Mode When should I choose stereo, dual-mono, or M/S-L/R?
Choose that first, before fine-tuning timing. Stereo is the normal starting point for bus use. Dual-mono makes sense when left and right genuinely need different behavior. M/S-L/R is for sessions where image control is part of the goal, not just loudness control.
Mode first, timing second, amount third is usually the cleaner path.
Detector When should I use the sidechain HPF, and which setting first?
Use it when low-frequency energy is making the compressor react more heavily than the musical goal requires. Product notes call out 0, 60Hz, 120Hz, and 180Hz options, with 60Hz often making sense on sub-heavy electronic material and 120Hz working well as a general starting point for pop or rock.
Think of HPF as stopping the kick or bass from deciding everything for the rest of the mix.
Blend What is the Mix control really buying me?
It lets you keep the violent, exciting side of the compressor without having to commit 100% wet. In practice, it is one of the simplest ways to keep density and impact while the source still stays alive.
On drums, a 30% to 70% range is often where the sweet spot starts becoming obvious.
Topology Why does the 1178 get more aggressive so quickly compared with some other compressors?
Because the fixed-threshold FET topology changes character as you drive it harder. Moderate gain reduction can stay musical and lively, while heavier drive turns it into a much more obvious limiter.
That shift in attitude is part of the design, not a sign that you suddenly set something incorrectly.
Character Is the 1178 supposed to be transparent?
Not primarily. You can run it gently, but its identity is fast, lively, assertive FET control. If the entire goal is invisibility, another compressor topology may be the more natural first reach.
The point is not subtlety at all costs. The point is useful energy you can still steer.
Recall What should I actually write down if I want a useful 1178 recall later?
Write down the source, mode, approximate gain reduction, HPF position, Mix setting, and what the compression was doing musically. That is usually more useful than knob positions alone.
A recall that says “drum bus, stereo, 5 dB GR, 120Hz HPF, blend at half, room came alive without cymbals splashing” is much easier to trust later.
Downloads & Resources
Keep the key files and working tools in one place
Open the matching setup sheet workspace or download the blank setup sheet for handwritten recall.
Open the shorter operating guide when you need a fast setup reference without the full manual.
Open PDFUse this page for first-session workflow, quick specs, and owner FAQ while the session is live.
Open the downloadable manual when you need a formal control reference or an offline copy outside the guide.
Open PDFUse the support page when the question moves beyond normal session behavior and into routing, noise, power, or service territory.
Open SupportService
What to have ready before you reach out
Mode Context
Say whether the issue happened in stereo, dual-mono, or M/S-L/R mode.
Drive Context
Include how hard the unit was being driven, roughly how much gain reduction you were seeing, and whether the source was meant to be moderate or aggressive.
Control Context
List attack, release, ratio, HPF, and Mix settings, because most 1178 questions only make sense once the full control context is visible.
Signal Chain Context
Note the source, what was feeding the 1178, what came after it, and confirm the mains and signal-chain context before assuming a hardware fault.
